Adapter
The adapter consists of a 36-pin Omnetics connector, a 12-pin Omnetics connector, a 16-pin Omnetics connector, a power management unit (PMU) block, a microcontroller unit (MCU), and a programmer connector. This system is shown in the figure below.
graph LR
%% PCB Definition
PCB1[Headstage]
subgraph PCB2[Adapter]
direction LR
subgraph b5["PMU-MCU"]
direction TB
c1[PMU]
c2[MCU]
c1 --> c2
end
conn1["Omnetics-16
Conn"]
conn0["Omnetics-12
Conn"]
subgraph b4["36-Pin Conn"]
e6[12]
e7[14]
e8[10]
end
e6 <--> conn0
e6 <--> b5
e7 <--> conn1
e8 <--> b5
end
b0["128 Electrode Array
with matching
Connector"]
%% Top-level connections
b0 <--> PCB1
PCB1 <----> b4
conn1 <--> i1["Intan Rec/Stim
Controller"]
conn0 <--> i0["Intan Rec
Controller"]
b5 <--> Programmer
Figure 1. System architecutre of the Adapter.
The figure below shows the different components of the adapter.
Figure 2. Rendering of the Adapter top and bottom sides indicating its main components.
The table below shows the main components of the Iris-128S adapter. Note the component correspondance with the previous figure.
| Component | Description |
|---|---|
RHD +3.3V |
64-ch neural recording amplifier chip, Intan. |
RHS +3.3V |
16-ch neural recording/stimulation chip, Intan. |
J1-1 |
RHD +3.3V pin header. |
J7-1 |
VDD3V pin header. This +3 V supply is generated by the PMU. |
J2-1 |
VDD_SW pin header. This +9 V supply is generated by the PMU. |
J3-1 |
VSS_SW pin header. This -9 V supply is generated by the PMU. |
J1-2, J7-2 J2-2, J3-2 |
GND pin headers. |
A79623-001 |
12-pin high-density connector, Omnetics. |
A79633-001 |
16-pin high-density connector, Omnetics. |
A79024-001 |
36-pin high-density connector, Omnetics. |
J4 |
SWD 10-pin 0.05' pitch Programming Port. |
J6 |
Reset Button connected to the MCU. |
J5 |
Expansion Port with MCU GPIOs. |
STM32U0 |
STM32U083KCU6 Ultra-low-power Arm M0+, 32-bit MCU. |
PMU |
Power management unit which generaters +3 V and ±9 V. |
X1 |
ECX-1210B 32.768 kHz Crystal. |
Power Management Unit - PMU
The PMU scheme is to provide the analog switches and MCU with their required voltages without altering the performance of the supply going to the Intan chips. We are placing regulators between any device's voltage supply and the power signal coming from the Intan Recording Controller. Switching noise coming from switching regulators could couple-back into the power input source through the regulators and potentially modify Intan chips performance. To minimize this effect, we are choosing switching regulators with a high switching frequency of > 1 MHz. The 64-Ch Intan Recording chip has two 32-input ADCs which digitize the analog inputs at 30 kSa/s per channel. The signal at the input of these ADCs is then sampled at 32 \(\times\) 30 kSa/s = 960 kHz. Assuming Nyquist, the frequency content of the ADC input is then 480 kHz. The ADP5070 has a switching frequency of 1.2/2.4 MHz which is outside of this signal bandwidth. We will use the switching frequency of 2.4 MHz.
Power Source Inputs
| Input (Connector) | S1 (Omnetics-12) | S4 (Omnetics-16) | Pin Headers |
|---|---|---|---|
VDD Pin |
T6 | T8 | J1-J7 |
GND Pin |
B6 | B8 | J1-J7 |
| Source | Rec Controller | Stim Controller | Unknown |
| Input Voltage | +3.2 - 3.6 V | +3.2 - 3.6 V | +3.3 V |
Ground Scheme
We have a total of 3 different grounds in the system. These are GND1 from the Recording controller, GND2 from the Stimulation controller, and GND3 from the Pin Headers. We use a commong ground plane for both GND1 and GND2, and two connection points between GND1 and GND3 planes using Net_Ties close to connectors S4 and S5.
Ground Domains
| GND Domain | Components |
|---|---|
GND1 = GND2 |
2x RHD2164 & 1x RHS2116 |
GND3 |
PMU + MCU + Switches |
Power Requirements
Power Requirement Estimation per Block
| Component | Current | # Devices | Total |
|---|---|---|---|
STM32U083 - Core @ 3.0V (Run Mode) |
54 uA/MHz | 1 | 52 uA |
STM32U083 - I/O - Static/Leakage @ 3.0V |
10uA + #I/Os*0.1 uA | 20 I/Os | 12 uA |
STM32U083 - I/O - Dynamic @ 3.0V |
Negligable, not switching expected |
N/A | 0 uA |
STM32U083 - Peripherals @ 3.0V |
~ 35 uA/MHz | 1 | 35 uA |
STM32U083 - Programming |
~10 mA | 1 | 10 mA |
ADGS5414 - IDD |
< 500 uA | 8 | 4 mA |
ADGS5414 - ISS |
1 uA | 8 | 8 uA |
ADGS5414 - IL (1 MHz) |
30 uA | 8 | 240 uA |
Output Current Requirement Estimation per Regulator
| Regulator | Supply | Voltage | Iout (Max) | Components | Required Output Current (Max) |
|---|---|---|---|---|---|
ADP7142 |
VDD_SW |
+9 V | 200 mA | ADGS5414 - VDD |
4 mA |
ADP7182 |
VSS_SW |
-9 V | 200 mA | ADGS5414 - VSS |
8 uA |
TLV711 - Vout1 |
VDD3V |
+3 V | 200 mA | ADGS5414 - VLSTM32U083 - VDDSTM32U083 - Programming |
240 uA 100 uA ~10 mA |
TLV711 - Vout2 |
VDDA3V |
+3 V | 200 mA | STM32U083 - VDDA |
50 uA |
Block Diagram
graph LR
i1["`**VDD1
Recording
Controller)**
3.2-3.6V`"]
subgraph pmu["`**PMU**`"]
subgraph s1["`**ADP5070 - 1A/0.6A**`"]
ADP5070-Vin["Vin
2.85-15V"]
ADP5070-VoutPOS["VoutPOS
Up to 39V"]
ADP5070-VoutNEG["VoutNEG
Down to -39V"]
ADP5070-Vin --> ADP5070-VoutPOS
ADP5070-Vin --> ADP5070-VoutNEG
end
subgraph s2["`**ADP7142 - 200mA**`"]
ADP7142-Vin["Vin
2.85-15V"]
ADP7142-Vout["Vout
Adj
+9V"]
ADP7142-Vin --> ADP7142-Vout
end
subgraph s3["`**ADP7182 - 200mA**`"]
ADP7182-Vin["Vin
-2.7- -28V"]
ADP7182-Vout["Vout
Adj
-9V"]
ADP7182-Vin --> ADP7182-Vout
end
subgraph s4["`**TLV711 - 200mA**`"]
TLV711-Vin["Vin
2-5.5V"]
TLV711-Vout1["Vout
Fixed
+3.0V"]
TLV711-Vout2["Vout
Fixed
+3.0V"]
TLV711-Vin --> TLV711-Vout1
TLV711-Vin --> TLV711-Vout2
end
%% Connections
ADP5070-VoutPOS --"`**VDDH**`"--> ADP7142-Vin
ADP5070-VoutNEG --"`**VSSH**`"--> ADP7182-Vin
end
subgraph s5["`**ADGS5414**`"]
ADGS5414-VL["VL
2.7-3.3V"]
ADGS5414-VDD["VDD
+9V"]
ADGS5414-VSS["VSS
-9V"]
end
subgraph s6["`**STM32U083**`"]
STM32U083-VDDA["VDDA
1.62/1.8/2.4-3.6V"]
STM32U083-VDD["VDD
1.71-3.6V"]
end
%% Connections
i1 --> ADP5070-Vin
ADP7142-Vout --> out1["`**VDD_SW
+9V**`"]
ADP7182-Vout --> out2["`**VSS_SW
-9V**`"]
i1 ----> TLV711-Vin
TLV711-Vout1 --> out3["`**VDD3V
+3.0V**`"]
TLV711-Vout2 --> out4["`**VDDA3V
+3.0V**`"]
out1 --> ADGS5414-VDD
out2 --> ADGS5414-VSS
out3 --> ADGS5414-VL
out3 --> STM32U083-VDD
out4 --> STM32U083-VDDAFigure 3. Block diagram of the PMU.
Microcontroller Unit - MCU STM32U083
Pin Assignment
| Pin Number | Pin Name | Assigned Function | Connection |
|---|---|---|---|
| 1 | VDD | Power | VDD3V |
| 24 | PA14 (SWCLK) | Prog. | J4-4 (PROG-SWD) |
| 16, 32 | GND | Power | GND |
| 23 | PA13 (SWDIO) | Prog. | J4-2 (PROG-SWD) |
| 4 | PF2-NRST | Reset/Prog. | J4-10 (PROG-SWD), J6 (Button) |
| 5 | VDDA/VREF+ | Power | VDDA3V |
| 17 | VDD2 | Power | VDD3V |
| 2 | PC14-OSC32_IN | OSC32 | Ext. Crystal |
| 3 | PC15-OSC32_OUT | OSC32 | Ext. Crystal |
| 6 | PA0-CK_IN | GPIO | J5-1 (Pin-Header) |
| 7 | PA1 | GPIO | J5-2 (Pin-Header) |
| 8 | PA2 | GPIO | J5-3 (Pin-Header) |
| 9 | PA3 | GPIO | J5-4 (Pin-Header) |
| 10 | PA4 | GPIO (DAC1_OUT1) | J5-5 (Pin-Header) |
| 11 | PA5 | GPIO | J5-6 (Pin-Header) |
| 12 | PA6 | GPIO | J5-7 (Pin-Header) |
| 13 | PA7 | GPIO | J5-8 (Pin-Header) |
| 14 | PB0 | GPIO (LPUART2_CTS) | J5-15 (Pin-Header) |
| 15 | PB1 | GPIO (LPUART2_RTS_DE) | J5-16 (Pin-Header) |
| 18 | PA8 | GPIO | LED D3 |
| 19 | PA9 | GPIO (I2C1_SCL) | J5-11, 4.7 kΩ pull-up |
| 20 | PA10 | GPIO (I2C1_SDA) | J5-12, 4.7 k\(\Omega\) pull-up |
| 21 | PA11 | GPIO | J5-13 (Pin-Header) |
| 22 | PA12 | GPIO | J5-14 (Pin-Header) |
| 25 | PA15 | SPI3_NSS | CSb_SW |
| 26 | PB3 | SPI3_SCK | SCLK_SW |
| 27 | PB4 | SPI3_MISO | MISO_SW |
| 28 | PB5 | SPI3_MOSI | MOSI_SW |
| 29 | PB6 | GPIO (LPUART2_TX) | J5-17 (Pin-Header) |
| 30 | PB7 | GPIO (LPUART2_RX) | J5-18 (Pin-Header) |
| 31 | PF3-BOOT0 | BOOT0 | GND (via 0\(\Omega\)) |
| 33 | Exposed Pad | Exposed Pad | GND |
Pin Connections
Power: Pins VDD (1, 17), VDDA (5), & GND (16, 32)
- VDD: External power supply for I/Os (VDDIO1), the internal regulator and the system analog.
- VDDA: External power supply for embedded analog components. It is independent from VDD.
- No power up/down sequence required.
Bypass Capacitors:
VDD-VSS- 1x 4.7 uF ceramic cap.
- 1x 100 nF ceramic cap per VDD pin.
VDDA-VSS- 1x 1 uF ceramic cap.
- 1x 100 nF ceramic cap.
- 1x 10 nF ceramic cap.
SWD: Pins SWDIO (23), SWCLK (24)
- Connected to
J4connector without any pull-up or pull-down resistors.
BOOT0: Pin BOOT0 (31)
- 1x 0 Ω resistor to
GND.
Reset: Pin NRST (4)
- This pin is internally connected to a permanent pull-up resistor, RPU.
- Connected to
J4connector for programming and pulse-button switch to reset the device locally.. - Filter capacitor of 0.1 uF to ground placed as close as possible to the device.
LF External Oscillator (2, PC14-OSC32_IN; 3, PC15-OSC32_OUT)
The X1 crystal used in the board is the ECX-1210B by ECS, with a CL = 6 pF.
J4 - Programming Connector
| Pin Number | Description | Pin Number | Description |
|---|---|---|---|
| 1 | T_VCC (VDD3V) | 2 | T_SWDIO (PA13) |
| 3 | GND | 4 | T_SWCLK (PA14) |
| 5 | GND | 6 | T_SWO (NC) |
| 7 | T_JRCLK/NC (NC) | 8 | T_JTDI/NC (NC) |
| 9 | GNDDetect (GND) | 10 | T_NRST (NRST) |
J5 - GPIO Connector
| Pin Number | Description | Pin Number | Description |
|---|---|---|---|
| 1 | PA0 | 2 | PA1 |
| 3 | PA2 | 4 | PA3 |
| 5 | PA4 (SPI1_NSS) | 6 | PA5 (SPI1_SCK) |
| 7 | PA6 (SPI1_MISO) | 8 | PA7 (SPI1_MOSI) |
| 9 | GND | 10 | VDD3V |
| 11 | PA9 (I2C1_SCL) | 12 | PA10 (I2C1_SDA) |
| 13 | PA11 | 14 | PA12 |
| 15 | PB0 | 16 | PB1 |
| 17 | PB6 (LPUART2_TX) | 18 | PB7 (LPUART2_RX) |
| 19 | GND | 20 | VDD3V |
3. Programming the Adapter MCU
MCU Peripherals used in the Project
RCC: System clock configuration.GPIO: Configuring MCU I/Os.SPI3: SPI block.
GPIOs
| Pin Name |
Signal on Pin |
GPIO Output Level |
GPIO Mode |
GPIO Pull-up/Pull-down |
|---|---|---|---|---|
| PA8 | N/A | Low | Output Push Pull | No pull-up/pull-down |
| PA15 | N/A (SPI3_NSS) | Low | Output Push Pull | No pull-up/pull-down |
| PB3 | SPI3_SCK | N/A | Alternate Function Push Pull | No pull-up/pull-down |
| PB4 | SPI3_MISO | N/A | Alternate Function Push Pull | No pull-up/pull-down |
| PB5 | SPI3_MOSI | N/A | Alternate Function Push Pull | No pull-up/pull-down |
SPI Block in MCU
| Parameter | Value |
|---|---|
| Mode | Full-Duplex Master |
| Frame Format | Motorola |
| Data Size | 8 bits |
| First Bit | MSB first |
| Baud Rate | 62.5 kb/s |
| CPOL | Low |
| CPHA | 1 Edge |
Building & Flashing
The adapter board has a STM32U083 ultra-low-power Arm M0+ 32-bit microcontroller (MCU) which is used to program the state of the switches in the headstage through SPI communication. You can use any tool you want to build the firmware and program the MCU; here we use the STM32Cube tools. The figure below shows a screenshot of the STM32CubeIDE with the main.c file in the center panel. You can download all the project documents from our github repository. To build the project, click on the
button.

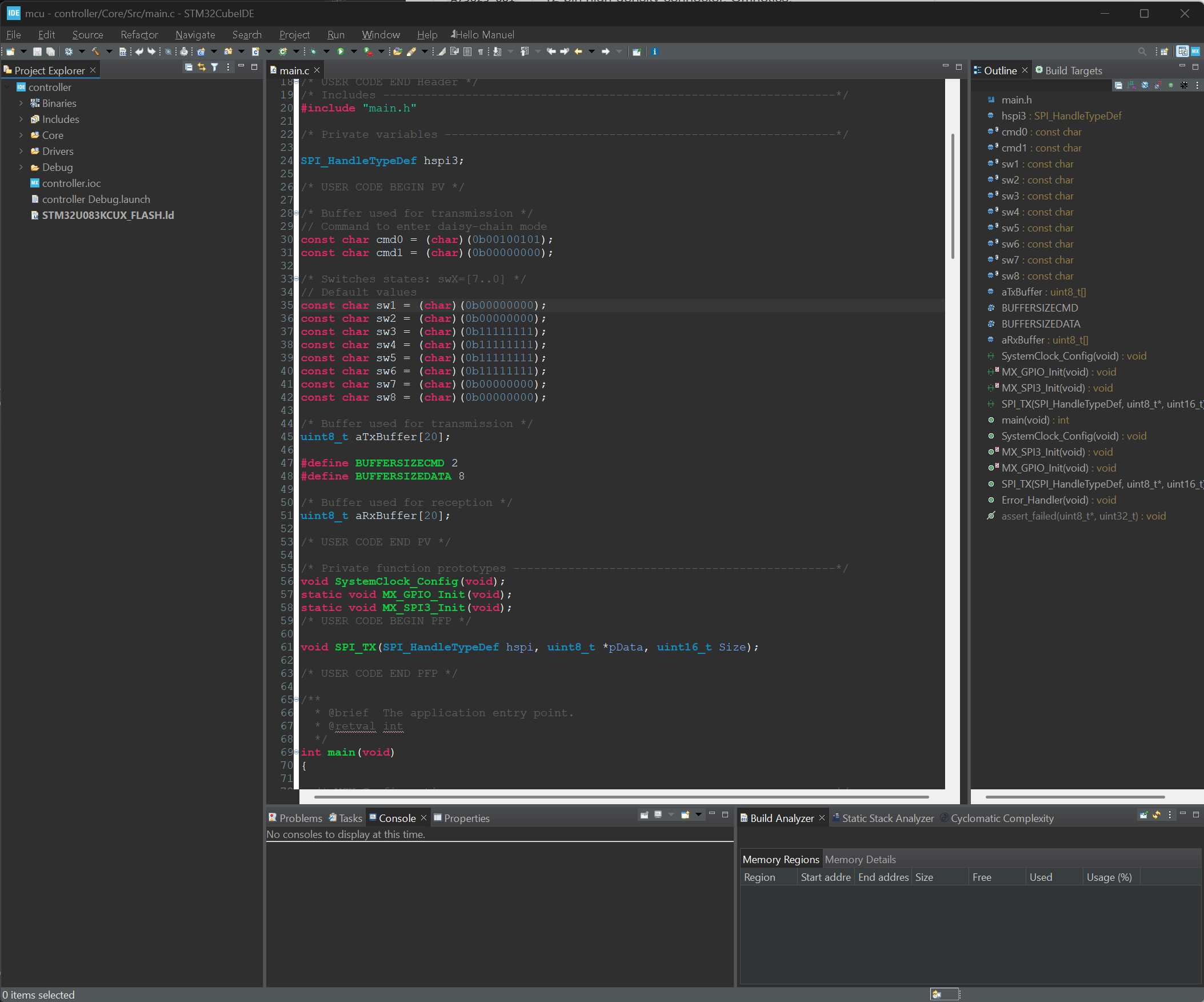

Figure 7. Screenshoot of the STM32CubeIDE with the main.c file in the center panel.

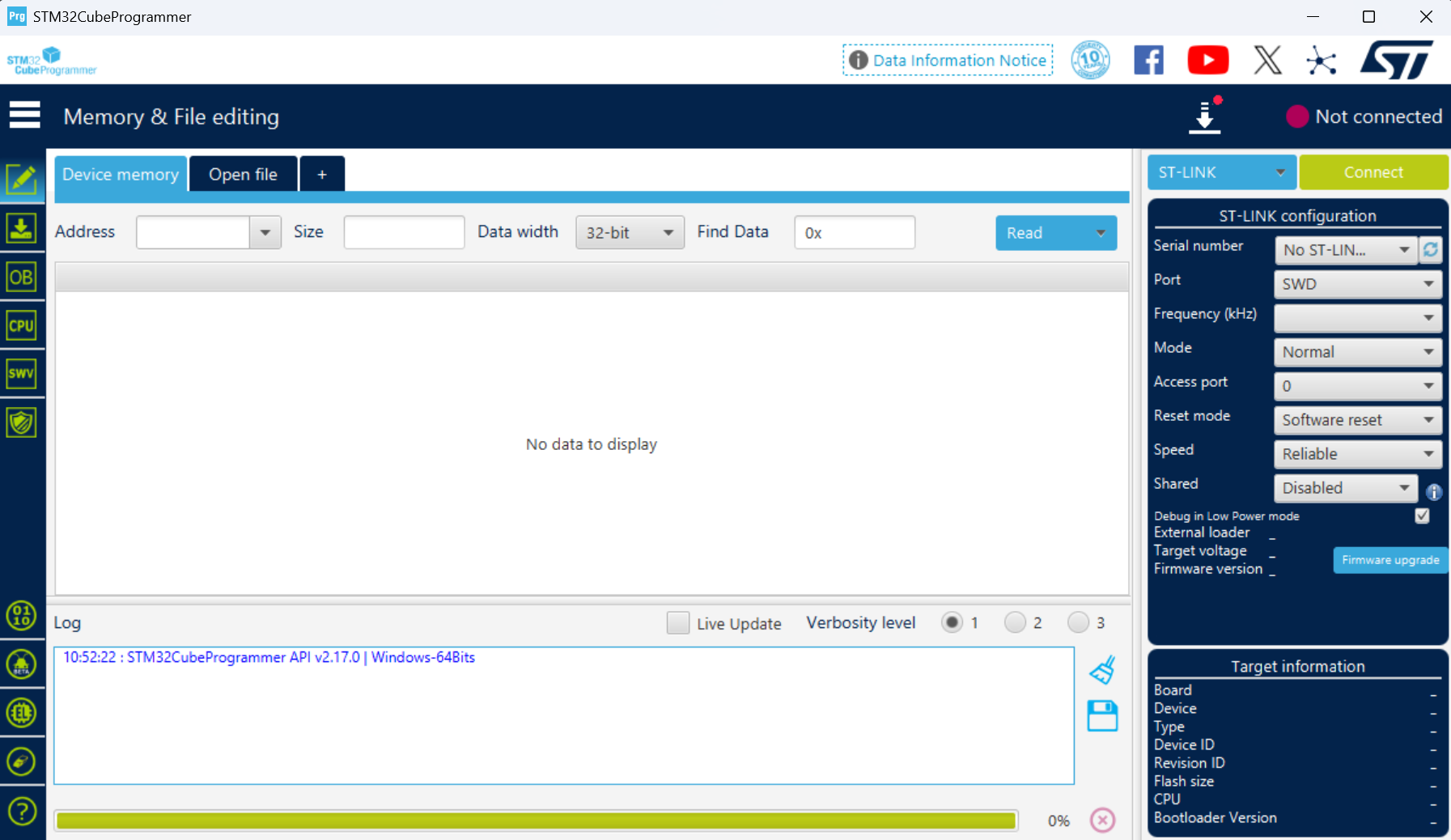

To program the MCU, we use the STM32CubeProgrammer. Connect the STLINK-V3 to the computer and the adapter board using the 10-pin ribbon cable. Press the Connect button to connect and identify the board. Program or flash the MCU by clicking on Program.
Figure 8. Screenshoot of the STM32CubeProgrammer.
Changing the State of the Switches
You can change the state of each of the switches in the eight octal ADGS5414 by updating the values of the constants shown below. Notice that the bit swX[Y] corresponds to the Y switch of component uX, where X,Y \(\in \{1,2,...8 \}\) . The value of 0 indicates the switch is open whereas the 1 indicates it is closed.
| Function | Actions |
|---|---|
| Recording | OPEN the switch to the RHS2116 and CLOSE the one to the RHD2164. |
| Stimulation | CLOSE the switch to the RHS2116 and OPEN the one to the RHD2164. |
Example Code
/* Switches states: swX=[7..0] */
// Default values
const char sw1 = (char)(0b00000000);
const char sw2 = (char)(0b00000000);
const char sw3 = (char)(0b11111111);
const char sw4 = (char)(0b11111111);
const char sw5 = (char)(0b11111111);
const char sw6 = (char)(0b11111111);
const char sw7 = (char)(0b00000000);
const char sw8 = (char)(0b00000000);
Warning
When configuring a stimulation channel, make sure to OPEN the switch connected to the RHD2164. Failure to do so can cause damage to the RHD2164 due to the possibility of higher than expected voltages at its input.
FW variables values for recording through RHD2164 chips
| Variable | Value |
|---|---|
| sw1 | 0b00000000 |
| sw2 | 0b00000000 |
| sw3 | 0b11111111 |
| sw4 | 0b11111111 |
| sw5 | 0b11111111 |
| sw6 | 0b11111111 |
| sw7 | 0b00000000 |
| sw8 | 0b00000000 |
FW variables values for Stim through RS0
| Variable | Value |
|---|---|
| sw1 | 0b00000000 |
| sw2 | 0b00000000 |
| sw3 | 0b11111111 |
| sw4 | 0b11111111 |
| sw5 | 0b10111111 |
| sw6 | 0b11111111 |
| sw7 | 0b00000000 |
| sw8 | 0b00000010 |
Further Development
The current use of the MCU is to program the state of the switches in the headstage after the adapter board is powered on. You could further expand the functions of the MCU to adapt the Iris-128s neural interface to your project. For this purpose, the adapter board features a reset button, a 32 kHz crystal, and a expansion port with flexible GPIO for easy prototyping and development.
PCB
The PCB for the adapter has a size of 50 x 40 mm2. The table below shows the PCB specifications.
PCB Specifications
| PCB Specification | Value |
|---|---|
| Size | 50 x 40 mm2 |
| Trace Width/Space | 5 mil / 5 mil |
| Layers | 4 |
| Thru-Hole Via (Hole/Diameter) | 10 mil / 20 mil |
| Thickness | 0.062 in (1.6 mm) |
| Surface Finish | ENIG |
| Copper Weight | 1 oz |
| Dielectric | Standard FR4 |
